Design System from Figma to Production in 24 Hours

135,000 nodes. Zero design tokens. One question: can an AI agent turn a raw UI kit into a fully tokenized, synced design system — in a single day?

The starting point: Untitled UI Free. A popular Figma UI kit with components but zero design tokens. No variables, no semantic naming, no code sync. Just raw hex colors and pixel values baked into 135,000+ nodes.

The tools: Claude Code + Figma MCP (which recently gained write capabilities — meaning the agent can not only read designs but modify Figma files programmatically).

Live Demo

Every component below is built from Figma tokens — change the type, hierarchy, size, or theme and see the live result.

Token Architecture

I structured tokens into three levels. Components never touch raw values.

/* Level 1: Primitives — raw palette */
--color-brand-600: #7f56d9;

/* Level 2: Semantic — role-based */
--background-brand-solid: var(--color-brand-600);

/* Level 3: Component — what code consumes */
--button-primary-bg: var(--background-brand-solid);

Pipeline

Stage	Flow
Tokens	Figma Variables → Token Exporter → JSON → generate-tokens.mjs → CSS
Components	Figma Components → get_design_context → React
Sync	Token Change → Sync to Code → n8n → GitHub → Vercel

Figma Plugins

The free Untitled UI had no variables at all. I built 6 custom Figma plugins to create and bind the token system:

Plugin	What it does
Variable Promoter	Rebinds 3,433 nodes from Primitive to Semantic tokens
Token Exporter	Exports all 3 collections with alias chain preservation
Component Style Extractor	Extracts 528 variant×state token maps from component sets
Orphan Checker	Audits which Semantic tokens have zero consumers
Semantic Binder	Binds paint styles to variables
Component Token Generator	Creates the Component token layer

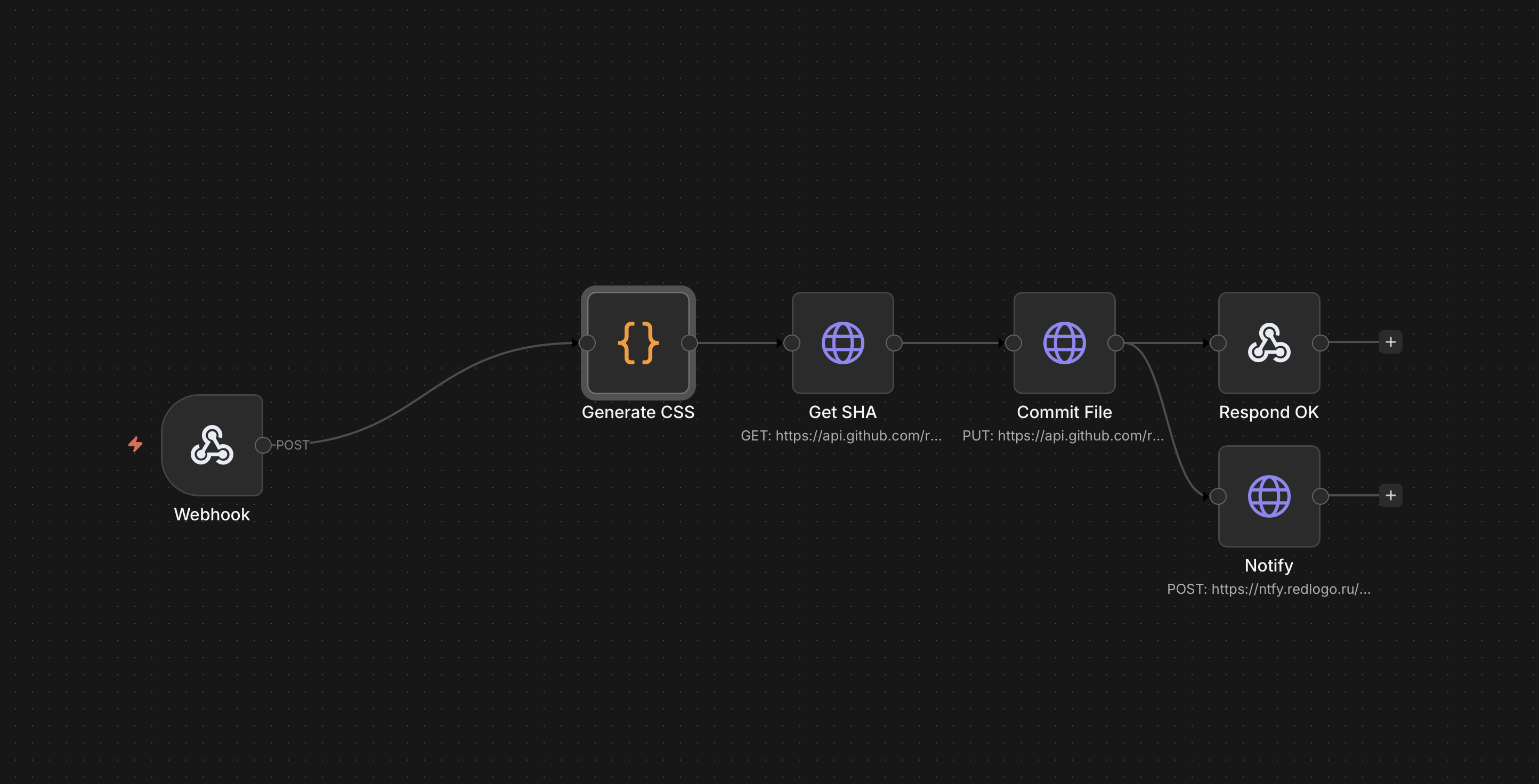

Token Sync Automation

Enterprise Figma has built-in token sync via REST API. I'm on Professional — so I built my own with n8n:

Step	Manual?
Change token in Figma	Yes
Export + Sync to Code	2 clicks
Generate CSS	Automatic
Commit to GitHub main	Automatic
Deploy to Vercel	Automatic
Push notification	Automatic

What I Learned

Early in the process I started keeping an error log — every time something broke, I wrote down what happened, why, and what rule would prevent it next time. By the end of the day I had 8 entries. This log turned out to be the most valuable artifact of the entire project: it became a set of machine-readable rules that I fed back into Claude Code, so the same mistakes don't repeat in future sessions.

The GOLDEN RULE: Never rewrite Figma output. Adapt it.

What went wrong	What I do now
Built generic components without reading Figma	Always get_design_context before code
Replaced Figma image assets with hand-drawn SVGs	Keep Figma asset URLs
Guessed token names	Copy exact names from Figma output
Skipped visual comparison	/figma-diff before every commit

I also built two reusable Claude Code skills during this project: design-token-audit (3-level compliance checker) and figma-diff (automated visual comparison). Both are open — grab them if useful.

What I Think About All This

Figma MCP removes the last blocker for solo builders: programmatic access to design data without Enterprise. Before this, design-to-code required Enterprise tier or fully manual work. Now I can programmatically read variables, extract component structures, and write back.

But it's not magic. The AI follows patterns, not intent. Every time I let it guess instead of reading Figma data — plausible but wrong output. Treat Figma as source of truth, not inspiration.

The 3-level token architecture was the most valuable decision. It made everything else possible: theme switching, component overrides, sync that doesn't break.

Would I use this on a real project? Yes — with more upfront investment in the Token Exporter. Three iterations was two too many.

Results

Disclaimer: this is a practice project. I have no commercial plans for this design system. Untitled UI is used strictly for educational purposes under their free license.
